Ace 2 Basic och Pro från Basler

Areakameror
Mono/Color	Mono
Interface	GigE
Upplösning max	1920 x 1200 px
Bildfrekvens max	51 fps
3612_Pixel size (µm)	3.45 x 3.45
Shutter typ	Global
Sensormodell	IMX392
Sensortillverkare	Sony
Sensortyp	CMOS
IP-klass	IP30
Strömförbrukning	3,6 W
Drivrutiner	Basler pylon Camera Software Suite or 3rd party Software
Exponeringskontroll	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)

Invisible Heading
Synkronisering	Software trigger, free-run och hardware trigger
Godkännanden	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision
Pixel Beyond	Nej
Sensorstorlek	1/2.3"
Vikt	100 g
Digitala ingångar	1
Längd	55,5 mm
Bredd	29 mm
Höjd	29 mm
Linsfattning	C-Mount
Arbetstemperatur	-10°C … 60°C

Varianter	Mono/Color	Interface	Upplösning max	Bildfrekvens max	3612_Pixel size (µm)	Shutter typ	Sensormodell	Sensortillverkare	Sensortyp	Linsfattning	IP-klass	Strömförbrukning	Drivrutiner	Exponeringskontroll	Synkronisering	Godkännanden	Pixel Beyond	Sensorstorlek	Vikt	Digitala ingångar	Längd	Bredd	Höjd	Linsfattning	Arbetstemperatur	Frame Rate - Compression Beyond	FPGA	IR-cut filter
ACE2 GigE M 2.3MP 1/2,3" IMX392 BAS Art: A2A1920-51GMBAS Kopierad	Mono	GigE	1920 x 1200 px	51 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2.3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE C 2.3MP 1/2,3" IMX392 BAS Art: A2A1920-51GCBAS Kopierad	Color	GigE	1920 x 1200 px	51 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2.3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE M 2.3MP 1/2,3" IMX392 PRO Art: A2A1920-51GMPRO Kopierad	Mono	GigE	1920 x 1200 px	51 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,8 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2.3"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	100 fps
ACE2 GigE C 2.3MP 1/2,3" IMX392 PRO Art: A2A1920-51GCPRO Kopierad	Color	GigE	1920 x 1200 px	51 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,8 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2.3"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	100 fps
ACE2 USB M 2.3MP 1/2,3" IMX392 BAS Art: A2A1920-160UMBAS Kopierad	Mono	USB 3.0	1920 x 1200 px	160 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1/2.3"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB C 2.3MP 1/2,3" IMX392 BAS Art: A2A1920-160UCBAS Kopierad	Color	USB 3.0	1920 x 1200 px	160 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1/2.3"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 2.3MP 1/2,3" IMX392 PRO Art: A2A1920-160UMPRO Kopierad	Mono	USB 3.0	1920 x 1200 px	160 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	4,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1/2.3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C	168 fps
ACE2 USB C 2.3MP 1/2,3" IMX392 PRO Art: A2A1920-160UCPRO Kopierad	Color	USB 3.0	1920 x 1200 px	160 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	4,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1/2.3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C	168 fps
Art: A2A1920-165G5MBAS Kopierad	Mono	5GigE	1920 x 1200 px	168 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30		Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2.3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Camera a2A1920-165g5cBAS - IMX392 Art: A2A1920-165G5CBAS Kopierad	Color	5GigE	1920 x 1200 px	168 fps	3.45 x 3.45	Global	IMX392	Sony	CMOS		IP30	3,1 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2.3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A2448-23GMBAS Kopierad	Mono	GigE	2448 x 2048 px	23 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,5 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C		Nej
Art: A2A2448-23GCBAS Kopierad	Color	GigE	2448 x 2048 px	23 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,6 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C		Nej	Ja
Art: A2A2448-23GMPRO Kopierad	Mono	GigE	2448 x 2048 px	23 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,3 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
ACE 2 GigE C 5MP 1/1.8" IMX547 Art: A2A2448-23GCPRO Kopierad	Color	GigE	2448 x 2048 px	23 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,3 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
Art: A2A2448-75UMBAS Kopierad	Mono	USB 3.0	2448 x 2048 px	75 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	1/1.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
"ACE2 USB C 5MP 1/1.8"" IMX547 BAS" Art: A2A2448-75UCBAS Kopierad	Color	USB 3.0	2448 x 2048 px	75 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	1/1.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2448-75UMPRO Kopierad	Mono	USB 3.0	2448 x 2048 px	75 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	1/1.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
ACE2 USB C 5MP 1/1,8" IMX547 PRO Art: A2A2448-75UCPRO Kopierad	Color	USB 3.0	2448 x 2048 px	75 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	1/1.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
Art: A2A2448-105G5MBAS Kopierad	Mono	5GigE	2448 x 2048 px	106 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30			Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Nej	Ja
ACE 2 5GigE C 5MP 1/1.8" BAS IMX547 Art: A2A2448-105G5CBAS Kopierad	Color	5GigE	2448 x 2048 px	106 fps	2.74 x 2.74	Global	IMX547	Sony	CMOS		IP30			Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Nej	Ja
ACE2 GigE M 5MP 1/2,8" IMX334ROI BAS Art: A2A2590-22GMBAS Kopierad	Mono	GigE	2592 x 1944 px	22 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2590-22GCBAS Kopierad	Color	GigE	2592 x 1944 px	22 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE M 5MP 1/2,8" IMX334ROI PRO Art: A2A2590-22GMPRO Kopierad	Mono	GigE	2592 x 1944 px	22 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3,1 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2.8"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	60 fps
Art: A2A2590-22GCPRO Kopierad	Color	GigE	2592 x 1944 px	22 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2.8"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	60 fps
ACE2 USB M 5MP 1/2,8" IMX334ROI BAS Art: A2A2590-60UMBAS Kopierad	Mono	USB 3.0	2592 x 1944 px	60 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	2,8 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1/2.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB C 5MP 1/2,8" IMX334ROI BAS Art: A2A2590-60UCBAS Kopierad	Color	USB 3.0	2592 x 1944 px	60 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1/2.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 5MP 1/2,8" IMX334ROI PRO Art: A2A2590-60UMPRO Kopierad	Mono	USB 3.0	2592 x 1944 px	60 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1/2.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A2590-60UCPRO Kopierad	Color	USB 3.0	2592 x 1944 px	60 fps	2 x 2	Rolling	IMX334ROI	Sony	CMOS		IP30	3,4 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1/2.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A2600-20GMBAS Kopierad	Mono	GigE	2600 x 2160 px	20 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS	C-mount	IP30	3,5 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2"	100 g	1	55,5 mm	29 mm	29 mm		-10°C … 60°C
Art: A2A2600-20GCBAS Kopierad	Color	GigE	2600 x 2160 px	20 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS	C-mount	IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/2"	100 g	1	55,5 mm	29 mm	29 mm		-10°C … 60°C
Art: A2A2600-20GMPRO Kopierad	Mono	GigE	2600 x 2160 px	20 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS	C-mount	IP30	3,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2"	100 g	1	55,5 mm	29 mm	29 mm		0°C … 50°C
Art: A2A2600-20GCPRO Kopierad	Color	GigE	2600 x 2160 px	20 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS	C-mount	IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2"	100 g	1	55,5 mm	29 mm	29 mm		0°C … 50°C
ACE 2 USB3.0 M 5.6MP 1/2" GMAX2505 Art: A2A2600-64UMBAS Kopierad	Mono	USB 3.0	2600 x 2160 px	64 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS		IP30	3,6 W				RoHS, CE, FCC, GenICam, USB3 Vision, EAC, UL	Nej	1/2"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2600-64UCBAS Kopierad	Color	USB 3.0	2600 x 2160 px	64 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS		IP30	3,9 W				RoHS, CE, FCC, GenICam, USB3 Vision, EAC, UL	Nej	1/2"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2600-64UMPRO Kopierad	Mono	USB 3.0	2600 x 2160 px	64 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS	C-mount	IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2"	90 g	1	42,8 mm	29 mm	29 mm		0°C … 50°C
Art: A2A2600-64UCPRO Kopierad	Color	USB 3.0	2600 x 2160 px	64 fps	2.5 x 2.5	Global	GMAX2505	Gpixel	CMOS	C-mount	IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/2"	90 g	1	42,8 mm	29 mm	29 mm		0°C … 50°C
"ACE2 GIGE M 8MP 2/3"" IMX546 BAS" Art: A2A2840-14GMBAS Kopierad	Mono	GigE	2840 x 2840 px	14 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,6 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	2/3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2840-14GCBAS Kopierad	Color	GigE	2840 x 2840 px	14 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,6 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	2/3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2840-14GMPRO Kopierad	Mono	GigE	2840 x 2840 px	14 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,3 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	2/3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
"ACE2 GIGE C 8MP 2/3"" IMX546 PRO" Art: A2A2840-14GCPRO Kopierad	Color	GigE	2840 x 2840 px	14 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,3 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	2/3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
Art: A2A2840-48UMBAS Kopierad	Mono	USB 3.0	2840 x 2840 px	48 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,6 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	2/3"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2840-48UCBAS Kopierad	Color	USB 3.0	2840 x 2840 px	48 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Nej	2/3"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A2840-48UMPRO Kopierad	Mono	USB 3.0	2840 x 2840 px	48 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
Art: A2A2840-48UCPRO Kopierad	Color	USB 3.0	2840 x 2840 px	48 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30	3,9 W		Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GigE Vision, RoHS, UL	Ja	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
ACE2 5GigE M 8MP 1/2,3" IMX546 BAS Art: A2A2840-67G5MBAS Kopierad	Mono	5GigE	2840 x 2840 px	67 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	2/3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 5GigE C 8MP 1/2,3" IMX546 BAS Art: A2A2840-67G5CBAS Kopierad	Color	5GigE	2840 x 2840 px	67 fps	2.74 x 2.74	Global	IMX546	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	2/3"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 GigE M 8.3MP 1/1,8" IMX334 BAS Art: A2A3840-13GMBAS Kopierad	Mono	GigE	3840 x 2160 px	13 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	2,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60
ACE2 GigE C 8.3MP 1/1,8" IMX334 BAS Art: A2A3840-13GCBAS Kopierad	Color	GigE	3840 x 2160	13 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/1.8"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A3840-13GMPRO Kopierad	Mono	GigE	3840 x 2160 px	13 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	3,1 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/1.8"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	36 fps
ACE2 GigE C 8.3MP 1/1,8" IMX334 PRO Art: A2A3840-13GCPRO Kopierad	Color	GigE	3840 x 2160 px	13 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	3,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/1.8"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	36 fps
ACE2 USB M 8.3MP 1/1,8" IMX334 BAS Art: A2A3840-45UMBAS Kopierad	Mono	USB 3.0	3840 x 2160 px	45 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	2,8 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1/1.8"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB C 8.3MP 1/1,8" IMX334 BAS Art: A2A3840-45UCBAS Kopierad	Color	USB 3.0	3840 x 2160 px	45 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1/1.8"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 8.3MP 1/1,8" IMX334 PRO Art: A2A3840-45UMPRO Kopierad	Mono	USB 3.0	3840 x 2160 px	45 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	2,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1/1.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 USB C 8.3MP 1/1,8" IMX334 PRO Art: A2A3840-45UCPRO Kopierad	Color	USB 3.0	3840 x 2160 px	45 fps	2 x 2	Rolling	IMX334	Sony	CMOS		IP30	3,4 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1/1.8"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
BAS CAM 4096 x 3000, 9fps, IMX545,C Art: A2A4096-9GMBAS Kopierad	Mono	GigE	4096 x 3000 px	9 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,5 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/1.1''	100 g	1	55,5 mm	29 mm	29 mm		0°C … 50°C
Art: A2A4096-9GCBAS Kopierad	Color	GigE	4096 x 3000 px	9 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/1.1''	100 g	1	55,5 mm	29 mm	29 mm		0°C … 50°C
Art: A2A4096-9GMPRO Kopierad	Mono	GigE	4096 x 3000 px	9 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/1.1''	100 g	1	55,5 mm	29 mm	29 mm		0°C … 50°C		Ja
Art: A2A4096-9GCPRO Kopierad	Color	GigE	4096 x 3000 px	9 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/1.1''	100 g	1	55,5 mm	29 mm	29 mm		0°C … 50°C		Ja
Art: A2A4096-30UMBAS Kopierad	Mono	USB 3.0	4096 x 3000 px	30 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/1.1''	85 g	1	42,8 mm	29 mm	29 mm		0°C … 50°C
Art: A2A4096-30UCBAS Kopierad	Color	USB 3.0	4096 x 3000 px	30 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1/1.1''	85 g	1	42,8 mm	29 mm	29 mm		0°C … 50°C
Art: A2A4096-30UMPRO Kopierad	Mono	USB 3.0	4096 x 3000 px	30 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/1.1''	90 g	1	42,8 mm	29 mm	29 mm		0°C … 50°C		Ja
Art: A2A4096-30UCPRO Kopierad	Color	USB 3.0	4096 x 3000 px	30 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS	C-mount	IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1/1.1''	90 g	1	42,8 mm	29 mm	29 mm		0°C … 50°C		Ja
Art: A2A4096-44G5MBAS Kopierad	Mono	5GigE	4096 x 3000 px	44 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1/1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A4096-44G5CBAS Kopierad	Color	5GigE	4096 x 3000 px	44 fps	2.74 x 2.74	Global	IMX545	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1/1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A4200-12GMBAS Kopierad	Mono	GigE	4200 x 2160 px	12 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL	Nej	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A4200-12GCBAS Kopierad	Color	GigE	4200 x 2160 px	12 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL	Nej	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A4200-12GCPRO Kopierad	Color	GigE	4200 x 2160 px	12 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL	Ja	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C		Ja
Art: A2A4200-12GMPRO Kopierad	Mono	GigE	4200 x 2160 px	12 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL	Ja	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C		Ja
Art: A2A4200-40UMBAS Kopierad	Mono	USB 3.0	4200 x 2160 px	40 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A4200-40UCBAS Kopierad	Color	USB 3.0	4200 x 2160 px	40 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
Art: A2A4200-40UMPRO Kopierad	Mono	USB 3.0	4200 x 2160 px	40 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
Art: A2A4200-40UCPRO Kopierad	Color	USB 3.0	4200 x 2160 px	40 fps	2.5 x 2.5	Global	GMAX2509	Gpixel	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	2/3"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C		Ja
ACE2 GigE C 20.2MP 1,1" IMX541 PRO Art: A2A4504-5GCPRO Kopierad	Color	GigE	4504 x 4504 px	5 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1.1"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	13 fps
ACE2 GigE M 20.2MP 1,1" IMX541 BAS Art: A2A4504-5GMBAS Kopierad	Mono	GigE	4504 x 4504 px	5 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	3,5 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE M 20.2MP 1,1" IMX541 PRO Art: A2A4504-5GMPRO Kopierad	Mono	GigE	4504 x 4504 px	5 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1.1"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	13 fps
ACE2 GigE C 20.2MP 1,1" IMX541 BAS Art: A2A4504-5GCBAS Kopierad	Color	GigE	4504 x 4504 px	5 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 20.2MP 1,1" IMX541 BAS Art: A2A4504-18UMBAS Kopierad	Mono	USB 3.0	4504 x 4504 px	18 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	3,7 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1.1"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB C 20.2MP 1,1" IMX541 BAS Art: A2A4504-18UCBAS Kopierad	Color	USB 3.0	4504 x 4504 px	18 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1.1"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 20.2MP 1,1" IMX541 PRO Art: A2A4504-18UMPRO Kopierad	Mono	USB 3.0	4504 x 4504 px	18 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	4 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1.1"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 USB C 20.2MP 1,1" IMX541 PRO Art: A2A4504-18UCPRO Kopierad	Color	USB 3.0	4504 x 4504 px	18 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30	4,4 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1.1"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 5GigE M 20.2MP 1,1" IMX541 BAS Art: A2A4504-27G5MBAS Kopierad	Mono	5GigE	4504 x 4504 px	27 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 5GigE C 20.2MP 1,1" IMX541 BAS Art: A2A4504-27G5CBAS Kopierad	Color	5GigE	4504 x 4504 px	27 fps	2.74 x 2.74	Global	IMX541	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 GigE M 16.1MP 1,1" IMX542 BAS Art: A2A5320-7GMBAS Kopierad	Mono	GigE	5320 x 3032 px	7 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	3,5 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE C 16.1MP 1,1" IMX542 BAS Art: A2A5320-7GCBAS Kopierad	Color	GigE	5320 x 3032 px	7 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE M 16.1MP 1,1" IMX542 PRO Art: A2A5320-7GMPRO Kopierad	Mono	GigE	5320 x 3032 px	7 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	3,7 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1.1"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	15 fps
ACE2 GigE C 16.1MP 1,1" IMX542 PRO Art: A2A5320-7GCPRO Kopierad	Color	GigE	5320 x 3032	7 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	4 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1.1"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	15 fps
ACE2 USB M 16.1MP 1,1" IMX542 BAS Art: A2A5320-23UMBAS Kopierad	Mono	USB 3.0	5320 x 3032 px	23 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1.1"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB C 16.1MP 1,1" IMX542 BAS Art: A2A5320-23UCBAS Kopierad	Color	USB 3.0	5320 x 3032 px	23 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1.1"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 16.1MP 1,1" IMX542 PRO Art: A2A5320-23UMPRO Kopierad	Mono	USB 3.0	5320 x 3032 px	23 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1.1"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 USB C 16.1MP 1,1" IMX542 PRO Art: A2A5320-23UCPRO Kopierad	Color	USB 3.0	5320 x 3032 px	23 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30	4,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1.1"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 5GigE M 16.1MP 1,1" IMX542 BAS Art: A2A5320-34G5MBAS Kopierad	Mono	5GigE	5320 x 3032 px	34 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 5GigE C 16.1MP 1,1" IMX542 BAS Art: A2A5320-34G5CBAS Kopierad	Color	5GigE	5320 x 3032 px	34 fps	2.74 x 2.74	Global	IMX542	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1.1"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 GigE M 24.4MP 1,2" IMX540 BAS Art: A2A5328-4GMBAS Kopierad	Mono	GigE	5328 x 4608 px	4 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1.2"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE C 24.4MP 1,2" IMX540 BAS Art: A2A5328-4GCBAS Kopierad	Color	GigE	5328 x 4608 px	4 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,4 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Nej	1.2"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 GigE M 24.4MP 1,2" IMX540 PRO Art: A2A5328-4GMPRO Kopierad	Mono	GigE	5328 x 4608 px	4 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1.2"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	10 fps
ACE2 GigE C 24.4MP 1,2" IMX540 PRO Art: A2A5328-4GCPRO Kopierad	Color	GigE	5328 x 4608 px	4 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,8 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, EAC, RoHS, UL, GigE Vision	Ja	1.2"	105 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C	10 fps
ACE2 USB M 24.4MP 1,2" IMX540 BAS Art: A2A5328-15UMBAS Kopierad	Mono	USB 3.0	5328 x 4608 px	15 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,6 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1.2"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB C 24.4MP 1,2" IMX540 BAS Art: A2A5328-15UCBAS Kopierad	Color	USB 3.0	5328 x 4608 px	15 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,9 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Nej	1.2"	85 g	1	42,8 mm	29 mm	29 mm	C-Mount	-10°C … 60°C
ACE2 USB M 24.4MP 1,2" IMX540 PRO Art: A2A5328-15UMPRO Kopierad	Mono	USB 3.0	5328 x 4608 px	15 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	3,8 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1.2"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
ACE2 USB C 24.4MP 1,2" IMX540 PRO Art: A2A5328-15UCPRO Kopierad	Color	USB 3.0	5328 x 4608 px	15 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30	4,3 W	Basler pylon Camera Software Suite or 3rd party Software	Via extern trigg eller programmerbar via kamerans API (Application Programming Interface)	Software trigger, free-run och hardware trigger	CE, FCC, GenICam, USB3 Vision, EAC, RoHS, UL	Ja	1.2"	90 g	1	42,8 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A5328-22G5MBAS Kopierad	Mono	5GigE	5328 x 4608 px	22 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1.2"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C
Art: A2A5328-22G5CBAS Kopierad	Color	5GigE	5328 x 4608 px	22 fps	2.74 x 2.74	Global	IMX540	Sony	CMOS		IP30					CE, FCC, GenICam, EAC, RoHS, GigE Vision	Nej	1.2"	100 g	1	55,5 mm	29 mm	29 mm	C-Mount	0°C … 50°C

Vald variant

Välj en variant i listan

Ace 2 Basic & Pro

Nästa generation av Ace-kameror!

Vald variant

Teknisk data

Produktbeskrivning

Tillbehör och relaterade produkter

Teknisk data

Areakameror

Invisible Heading

Nedladdningsbara filer

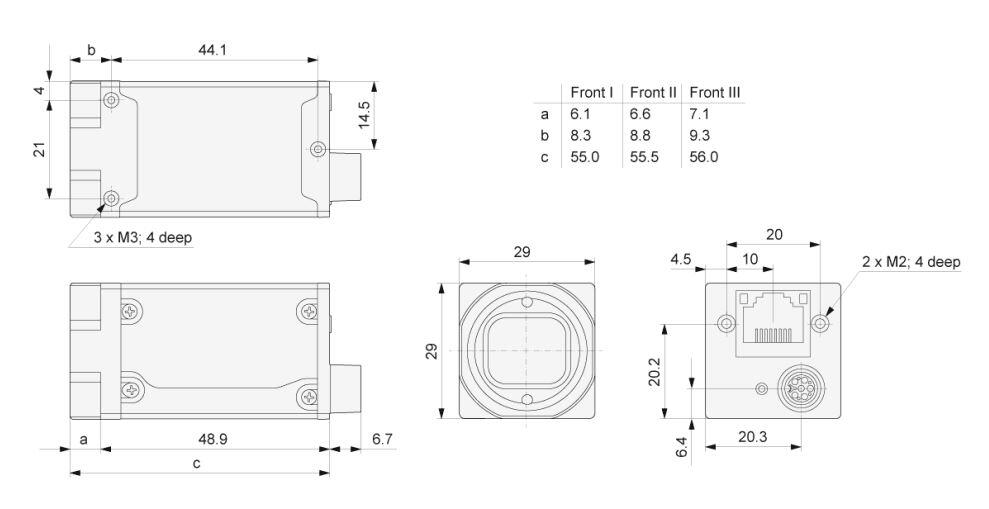

Mått och inkopplingar
